Building a Platform: Part 3

Designing Great Contracts First

This post may contain affiliate links and I may earn a small commission when you click on the links at no additional cost to you. As an Amazon Affiliate I earn from qualifying purchases.

Series Table of Contents

Part 0: Standard Abstraction Layers and Defining the Platform Part 1: Types and Process of Generalization Part 2: The Architecture of Your Platform Part 3: Designing Great Contracts First Part 4: Implement and Test Contracts Part 5: Continuous Integration Early Steps Part 6: Evolving the Platform Part 7: Dreaded Documentation Details Part 8: Distribution of the Platform

We're continuing our series on "Building a Platform." We have talked about the "Process of Generalization" and the "The Architecture of Your Platform." Now it's time to put some of this into practice.

In Part 3, we're going to be talking about contracts and the importance of these as we build out the platform.

Code Contracts are formal, or informal, agreements between two entities in a software system, or external actors.

These contracts can be anything from API Design Schemas, Abstract Class Conditions, General Performance Agreements, or anything else. The word "contract" is a very general term. We will describe design principles around these contracts and which ones to prioritize.

Common Contract Types in a Platform

As mentioned before, a contract is any agreement between two entities. Sometimes, the agreement is one-sided (where the developer / designer determines the agreement solely) or two-sided (where requirements are set from a customer and signed off). Both will happen in every project or platform. Let's discuss various types of contracts and their importance.

Stakeholder Requirements

These are the most common type of contracts within a system. These are typically features, or business logic, that the customer desires in a system. It is our job to ensure these requirements are met appropriately. Even if a platform isn't used, a professional developer will deal with requirements.

This type of contract is implicit, by nature. There isn't any real design put forth, although there may be discussion about the efficacy of a requirement. Typically, we cannot get out of this "contract." For any project, these are the most important. These also are the foundation of a platform, and subsequently, the design for the remainder of the contracts. Think about requirements as the bottom-most contract.

User-Interface

The user-interface (or UI) is the most visible type of contract in a system. This is where we design, get feedback, and agree to how the system may look or feel. Agreements are usually formed via mock-ups, prototypes, or general design documents.

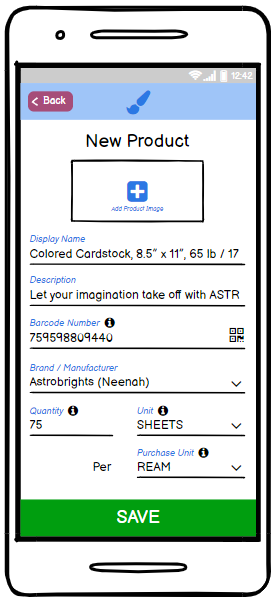

Balsamiq Sample Design

Once a design is agreed upon, it is important that an accurate representation is implemented within the final product.

Web API Schema

Not all users will interact solely from within a UI. Instead, they may interact with a service or endpoint, typically server-server. Sometimes it could be that the UI calls a web endpoint. Either way, a schema acts as a digital mechanism to transfer data between two interlocking (general) interfaces.

This type of contract has a high impact on interoperability and should be considered stable. Unless there is a high degree of control of the clients, and their implementation of the schema calls, changing the parameters of a schema could drastically affect many of your clients. Causing clients development time, lowers the value of the service.

One approach to allowing more flexibility in changes in your schema is to provide integration packages that will interact with the services through a programming library or API. This can help avoid changes on the client, if they are utilizing these packages.

One benefit to building this contract early, before development has started, is that when API(s) are being used by the frontend team, you can have the frontend and backend teams working simultaneously. Since both know the contract, you don't necessarily have to wait on the backend to be finished to start development.

Library / SDK

If providing a platform is targeting a group of developers, much of the contracts will be around function calls and some abstractions. We, as developers, use these types of libraries every day. It could be frameworks Vue.js or libraries like System.Net.Http. The authors target a very large audience, and consequently, must ensure backward compatibility to ensure the lowest impact when changes occur.

Libraries and SDK(s) should be considered a stable contract that should be appropriately managed.

Internally utilized libraries, however, may not require the same level of stability, if the audience is limited.

Data Storage

Where, and how, we store the data for our system can have a profound impact on its usefulness. For instance, some systems will utilize the same data structures for OLTP Systems and Reporting Systems. Some systems will have a monolithic database that contains all data for all modules. While other systems may have several smaller data stores for a more microservice-esque architecture.

Regardless of the approach, the design of a data storage mechanism is a form of contract. This is especially true when more than one application accesses the same storage. When each application has its own storage, and only communicates between service calls, the stability of the design becomes less important.

Triggered Services

Have you ever had to create a background task that runs every day at 1

? Or had to send emails out after a specific process has run? This is what we call a triggered service. We create a "contract" with the business or system, that guarantees that something will occur in response to some event.

This type of contract helps to guarantee the operation of a system. When some output goes missing, we must understand what we expect to occur. In most cases, this form of contract is not considered stable, or necessary to be so. Instead, it simply requires us to set an expectation of event-driven behavior.

Process Design

How do we interact with other teams? What are we going to pass to X department when we're ready to do Y? A well-designed process can also be considered a contract. It will typically be between people though (Although services and other systems is applicable as well). We will want to make sure that the design of our systems within our platform, including communication is thoughtful and efficient for all groups. And the hardest part of process design contracts? Buy-In.

A contract between groups may be as simple as the following:

Developers build a plugin as a feature addition.
Developers agree to produce feature installation instructions.
Developers agree to produce release notes on the plugin.
Developers pass plugin and documentation to delivery engineers.
Delivery engineers agree to post plugin and documentation on the platform's marketplace.

This is a very simple example, but without these agreements, the uncertainty of responsibility causes inefficiency. It is important that all groups are involved during the process to ensure there isn't an overburden on any single group. It is just as bad for developers to become more efficient but pass the inefficiency onto another group, as it is to keep it themselves.

Contract Design Prioritization

There are many more categories of contracts that are possible, than the ones provided above. These, I believe, to be the most common we'll encounter in most projects.

The question now arises, "Which contracts do we design?"

In an ideal world, you would design all of them, from start to end, without fail. And in some scenarios, this does occur: Military Systems, Hospital Systems, or any system that is critical to the sustainment of life.

But in the majority of systems, we cannot be paralyzed by design and never get the application built. So, we really should prioritize which contracts to design. How then, do we pick which contracts to design? Which ones are the most important?

The Customer and The Platform

Let's sidetrack the conversation for a moment and talk about the customer needs and the platform needs.

We need to remember the purpose of our platform…

A Platform is NOT built for a customer! It is about delivering a System to a Customer more efficiently.

This means, what we're calling a platform, is for our use, or the use of an internal client that will deliver a finished product to a customer. Our goal is efficiency and to reduce cost of building software.

In the event that you're providing a "self-service platform" for an external customer to use, they will be using it to fulfill their requirements more efficiently. A great example of a self-service platform is webflow.com. This allows anyone to build an eCommerce site, with data storage, without ever knowing software development. Webflow is a platform for all intents and purposes.

Stability and Fan-In

So, how do we know which contracts are the most important to start with? This actually is a fairly easy answer,

Prioritize contract designs with the largest stability needs, or put another way, the contracts that affect the most clients.

We should always prioritize the contracts that affect the most clients, and has the highest external fan-in. These designs will have the most impact, if they have to change.

For instance, if we're building a plugin system that will be utilized by clients to add their own functionality, we should focus on creating a highly dynamic contract that can be used by all clients. If done well, we may even be able to use this system to deliver plugins ourselves instead of altering the underlying system.

Return On Investment (ROI)

If we're building a large number of external contracts, we should next prioritize based on our return on investment (or ROI). We can define our ROI as,

The total cost of building customer functionality without said contract minus the total cost of building customer functionality with said contract.

This is probably not the best definition. And it is a little abstract (and can be hard to measure). But let's use an example to illustrate,

Let's say we have to perform customer translations each time we deliver an online web product. We are utilizing a simple JSON file with key-value pairs of key: "<translation text>". Each file is its own language. Let's suppose that each key is fairly inconsistent from application to application that uses these keys. When a new key is added, it is manually added to each file. Assuming we do not forget to add these keys appropriately, we end up taking approximately 2 weeks of time from a developer to ensure translations are correct on the screen (with manual testing).

The contract, in this case, is the JSON file formats and the manual process of adding the key to the files when a developer has the need. Instead, we should really make this a lot better.

What if we did the following,

All developers, on all applications, agree to a standard key format. But instead of adding the keys manually, the implementing developer creates a CLI tool that scans all code files for the keys. These keys are then populated into a standardized, computer-friendly format. This format can then be used to export to an appropriate Excel / CSV format that can be passed onto a translation team. Once completed, the team can then return the Excel / CSV file to be merged into the original. At this point, the developer may spend a couple hours coordinating between groups, but manually entering these into a JSON file, or locating appropriate keys disappears.

By coming to an agreement (a contract) on our process, we can see the return we can achieve by investing in a few small tools for the platform. At first glance, we may find it wasteful, as we are not implementing customer requirements immediately, but over time these costs add up. We should prioritize these types of improvements after experiencing the waste. When we focus on efficiency, we increase our ROI.

Designing the Contracts

As you have seen, thus far, we have been talking about the idea of contracts and some simple ways to prioritize them. Ultimately, we're aiming for efficiency. But we should realize that not all contracts are code related. In the example above, a good portion of our ROI improvement is a process contract.

Let's walk through the tools of design for different contracts and some technical concerns required for each.

Note: I'm will only cover UI, API, Libraries, and Data Storage contract types.

General Recommendations

Before jumping into the details of each type, I want to recommend a few guidelines to ease your pain in design. These are simply guidelines, and are not requirements, but if practiced, you'll find immeasurable value. These apply to all contract types.

1. Collaboration

Collaborate when doing design. I don't recommend bringing everyone and their mother to the design sessions. However, you should bring folks in that have dynamic viewpoints and can appropriately disagree with you. They will help you to question any preconceived notions you may have about your own design, only making it better.

Recommended Tools: Microsoft Teams, Slack, Whiteboards

2. Work/Data/Process Flows

Almost everything we do has some form of "flow" to it. It could be the user workflows in a UI to the flow of data in the system. When you start talking about concrete interfaces, the use of a good flow can make the process trivial.

I'm partial to Microsoft Visio myself (mainly because I know it best). However, I do know that it can be limiting. I've used diagramming software like Lucidchart in the past as well and found it to work well (if not better in some scenarios). And if neither of those work you can always produce the final documentation, after manually working it out (whiteboarding), in something like PlantUML.

Example Workflow

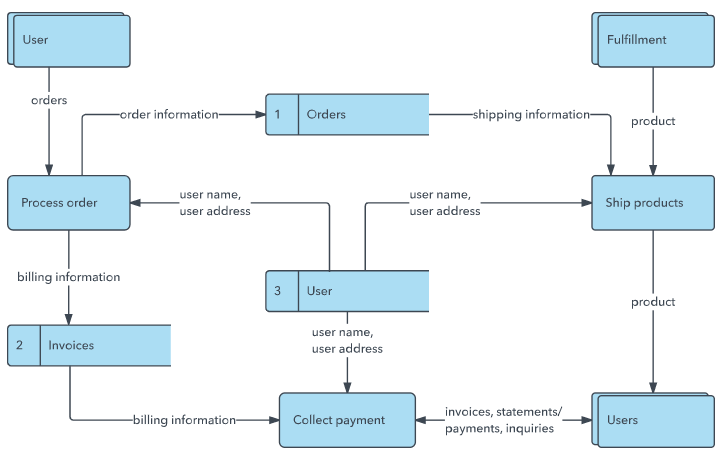

Lucidchart Dataflow Diagram Example

These flows themselves offer a form of contract design. Getting these done will save a lot of communication when trying to get buy-in from other developers and designers.

Recommended Tools: Microsoft Visio, Lucidchart, PlantUML

3. Design Sessions

When you do perform design sessions on these contracts with other individuals, record them (with the permission of the team of course). A lot can be said and taking notes during a meeting (and doing it well) is hard. So, record them, review them, and ensure that everyone is in agreement by the end of the session.

Even if you're doing a design session by yourself, record it. Rubber duck the session and talk out loud. You'll find that even talking it out loud a lot of Aha! moments will jump out.

A sample agenda for a design meeting

(Start) Summarize Problem or Requirement
Draw out Flow(s) for the problem and talk through all use cases known (Allow others to propose other use cases)
Debate High-Level decisions (technology, architecture, etc)
Sketch Low-Level decisions (API Design, Abstract Classes, etc)
Debate Design and Repeat 4–6 until a decision is agreed
(End) Summarize decisions of the design

Have questions and thoughts before ever starting a design decision. Be sure to defend your position. You will, and should, get pushback. However, be able to concede if a better design emerges.

Recommended Tools: Microsoft Teams, OBS

User-Interface (UI)

With a user interface "contract" design the goal is NOT high-fidelity. Instead, it is about intent. Assuming we already have some workflows in place, we should utilize a tool that can be used to easily walk through the design in a storyboard fashion.

For a developer, I usually prefer Balsamiq. However, I have also used Adobe XD for rapid prototyping. Another tool that I have seen used is Figma, although I do not think this is as tailored to developers as it is UI/UX expertise.

The goal with any design here is to understand the underlying mechanisms you'll need. I would break this up into several stages:

Raw Design: Design the UI in a very literal way to what you think the user will need.
Componentize: Find common elements and generalize components for re-use throughout the UI.
Document: Document the design

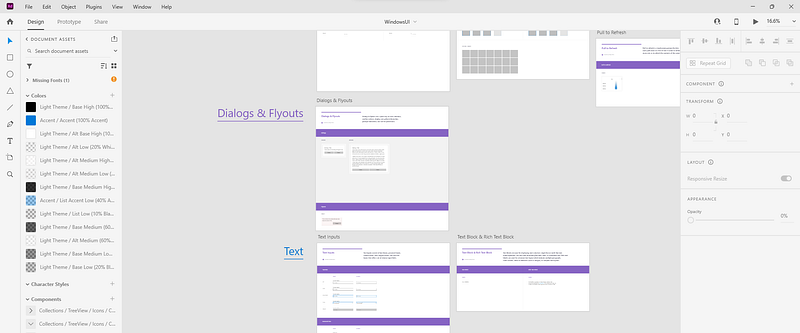

Adobe XD (WindowsUI Kit)

Stage 1 is just about the design. Again, this can be within Adobe XD or Balsamiq and isn't meant to be a high-fidelity design. It is just intended to understand what the UI will require.

Stage 2 is where we start developing out the contracts we care about. We will componentize the design. This is where we define the components that can be re-used throughout the design, or even better, throughout multiple applications.

Stage 3 is about documenting the components. This can best be described through simple documentation guidelines. In most cases, a formatted markdown file should be enough.

Some considerations for the component design are the following:

What is the input data? Is there a specific format required to make this work interchangeably?
What will the component display versus what will it have to maintain in the background?
Is the component interactive? What are the events you expect for it to operate fully?
How will the component change between different use cases? Can the changes be quantified? Is it just style differences? Or are their different visual layouts? What about enabling or disabling different aspects of the component? Answering this question will directly affect the options of the component.

By understanding and documenting the answers to these questions, you will have a clear set of requirements.

When it comes to documentation of UI elements, it is recommended that you follow a common guideline to defining the interface of a component in your system. Here is an example below,

# Component: Internationalization (i18n) Label

## Status
Proposed

## Description
A simple label that will automatically translate text based on a key and language offering. The element will be an `inline-block` that utilizing the `span` HTML element. An implicit class of `i18n` will be on all elements.

### Input
| Attribute | Type | Description |
| --------- | ---- | ----------- |
| data-key | string | The i18n key to be used |
| lang | string | i18n standardized language value |
| default | string | The default value to show while the strings are loading |

### Events
N/A (Non-Interactive)

### Functionality
A service is required to perform the replacement of these keys appropriately. The component itself should not perform the replacement but rather it acts as a holder of the keys.

### Usage
`vue.js` Example
<i18n data-key="page1.title" :lang="options.language" default="The title of the page" />

**NPM Package**: `internal\general-components\vue`
**TypeScript Interface**: `VueI18n`

Of course, change this according to your needs. There are lots of ways to design a decision record. The real goal is to provide a clear understanding of the component to those developing and utilizing it.

I recommend that these documents live either:

In an agreed upon centralized global location with appropriate access controls
With the code library itself, centralized within the repository.
